808 laser hair removal/diode laser hair removal machine

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Laser
Q-Switch:
No
Style:
Stationary
Certification:
CE
Place of Origin:
Beijing, China (Mainland)
Brand Name:
AS
Model Number:
P-808
Feature:
Hair Removal
Product name:
diode laser hair removal machine
Laser Type:
diode laser
Wavelength (Spectrum):
808nm
Energy Density (Fluence):
1-166J/cm2 (Continuously adjustable)
Spot Size:
15x15mm2 (Diode Laser) +25x25mm cool head
Pulse Repetition Rate:
10Hz
Display:
10 inch True Color LCD Touch Screen
Net Weight:
65kg
Stand by Working:
Continuously for 20 hours
Cooling system:
Continuous Crystal contact + Air + Closed water circulation cooling
Supply Ability
Supply Ability:
800 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packing size: 55*58*120cm , Aluminum box
Port
Beijing
Lead Time :
Shipped in 3 days after payment



                               808 laser hair removal/diode laser hair removal machine

Product Description



 Function

Permenent hair removal, better than IPL and E-light;

Remove hair on different part of body effectively. Such as armpit hair , beard, lip hair, hair line, bikini line, body hair and other unwanted hair.



 Technical data



Laser TypeDiode Laser
Wavelength (Spectrum)808nm
Energy Density (Fluence)1-166J/cm2  (Continuously adjustable)
Spot Size15x15mm2 (Diode Laser)   +25x25mm cool head
Pulse Repetition Rate10Hz
Pulse Duration10-400ms
Cooling
Continuous Crystal contact cooling (-10℃~1℃ )
+ Air cooling
+ Closed water circulation cooling
Stand-by WorkingContinuously for 20 hours
Display10″ True Color LCD Touch Screen
Electrical Requirements100-240VAC, 20A max., 50/60Hz
Net Weight65kgs
Dimensions (WxDxH)55*58*120cm

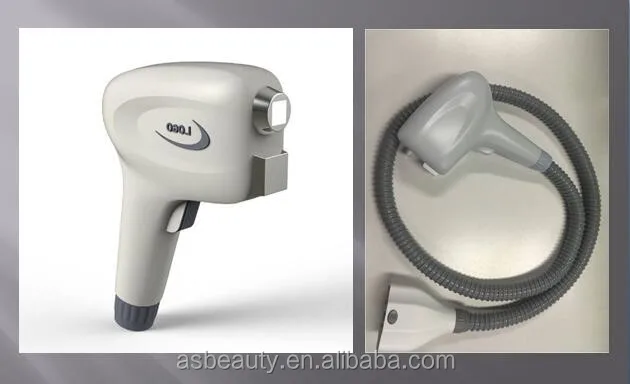

 Characteristics of handpiece



Adopt Germany 600W diode array . Big output power, highly efficient and long life.
The technology of sapphire crystal and special coating can enhance light transmission and uniformity, otherwise, light leak will influence laser and the skin cooling effect.
The technology of efficient TEC and constant temperature control can fully cool the treated areas to avoid pricking during treatment and the danger of thermal damage to the epidermis,achieving the effect of painfree hair removal.
Professional physical design and special electroplating process to ensure the stability andefficiency of the laser as well as cooling effect, meanwhile to protecting the laser from damages caused by cooling water pollution, lack of water and other factors.
Attractive appearance and easy-to-use design, combined with special sealing process to avoid the risk of dust pollution and moisture condensation.

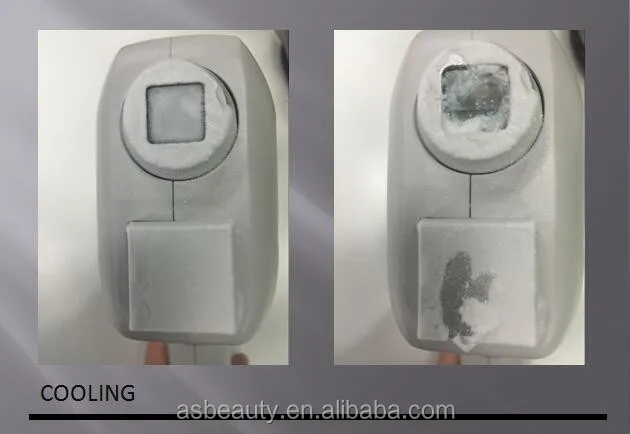

 Cooling handpiece











 Characteristics of main engine waterway



Semiconductor cooling water tank and high quality air cooling radiator to meet the cooling demands of laser device and skin cooling in severe and poor working environment.
high -capacity and high pressure water pump to ensure the sufficient water circulation and heat dissipation when laser devise is working, so that the laser can work safely and reliably.
Using water flow sensor, prevent the laser and TEC from fatal injuries caused by lack of water.
Using water quality sensor, avoid reduction of laser’s service life caused by water pollution.
Using water temperature sensor, avoid reduction of laser’s service life and skin cooling
Using water level sensor to prevent the affection of cooling effect by lack of water.




 Our machine can reserve customer information

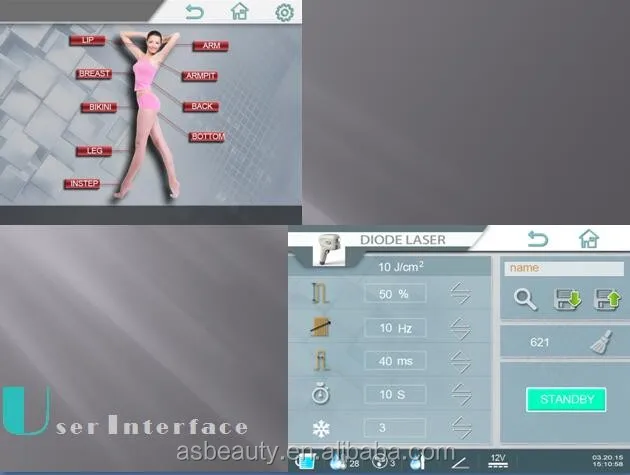

 Screen interface









 Before and after







Our Services



Warranty

A.S offer 3 year free warranty, lifetime maintan, 24 hours on-line service.

We have Specific aftersale service Regulations which would be wirtten on the last page

of our machine’s user manual. And we will offer the service to you according to the

regulation strictly.

OEM/ODM Service

1. Software adjustment (logo &menu design, different languages)

2. Unique machine shape design

3. Treatment handle, filters design.

4. Package (style, material, label design)

5. According to the budget, machine weight, size, provides reasonable projects.

Training:



Once you buy machines from us,we supply professional training for you. Detailed user

manual, Video, online service are the basis training. Moreover, we teach how to use

the machine and how to do the treatments step by step.
